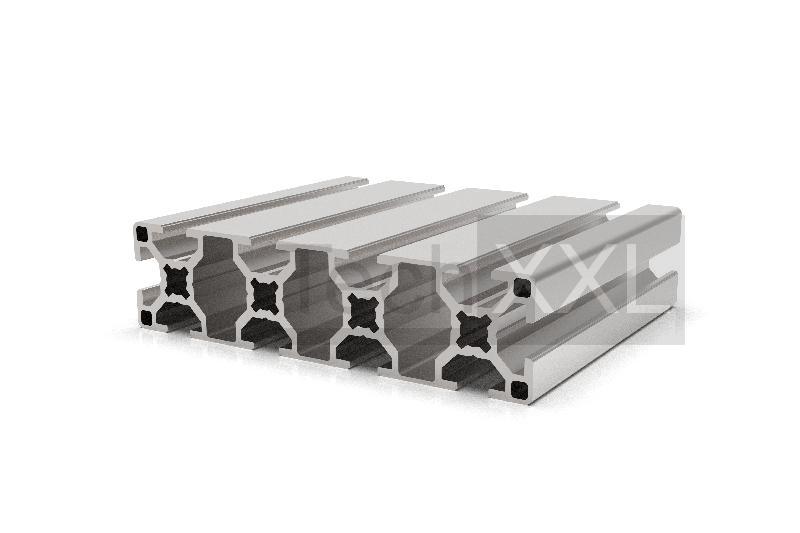

Profile 120x30 type B
made in Europe
Serie: Groove 8
Typ: B

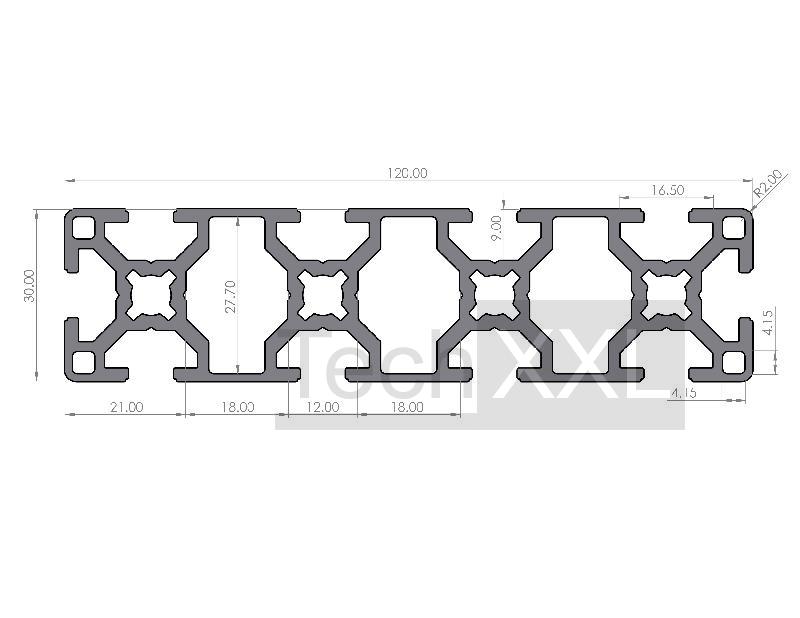

Dimensions (mm): 6040 x 120 x 30
Material: AlMgSi0,5F25 natur eloxiert
Moment of inertia I x: 9,37 cm4
Moment of inertia I y: 137,41 cm4
Elastic modulus W x: 6,25 cm³
Elastic modulus W y: 22,90 cm³
Weight: 3,059 Kg/m
TIN: 102574 ID: S108B12030
CAD Data
---------------
from stock
Aluminium profile in natural anodized application from European production Can only be built with connection and accessories of the series 8 in grid B30 Tolerances for cuts according to DIN ISO 2768 Part 1 m
Here you can quickly and easily request the currently best possible price. You will immediately receive an offer including delivery time and availability. We usually have the item in stock.
Please choose / Bitte wählen
at bar products request cheap scale price
⮮
for cuts (including saw cut) request cheap unit price
⮮ The cuting is limited between min. 20 mm and max. 6000mm
Shipping with parcel service is possible until 2400mm
