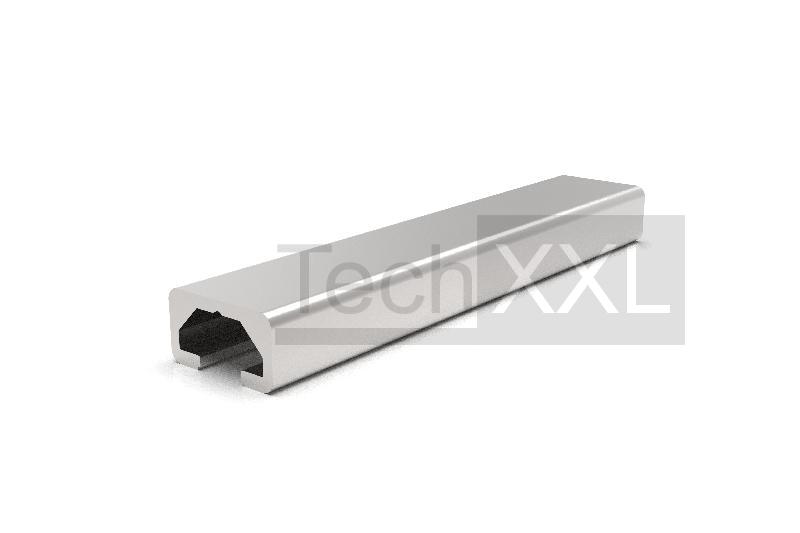

Profile 8 20x11 type B

made in Europe

Profile 8 20x11 type B wie HS108B2011
Profile 8 20x11 type B compatible to Bosch 3842513581
Technical data
Serie: Groove 8
Typ: B
Dimensions (mm): 6040 x 20 x 11
Material: AlMgSi0,5F25 natur eloxiert
Moment of inertia I x: 0,13 cm4
Moment of inertia I y: 0,52 cm4
Elastic modulus W x: 0,2 cm³
Elastic modulus W y: 0,52 cm³
Weight: 0,31 Kg/m
TIN: 102575 ID: S108B2011

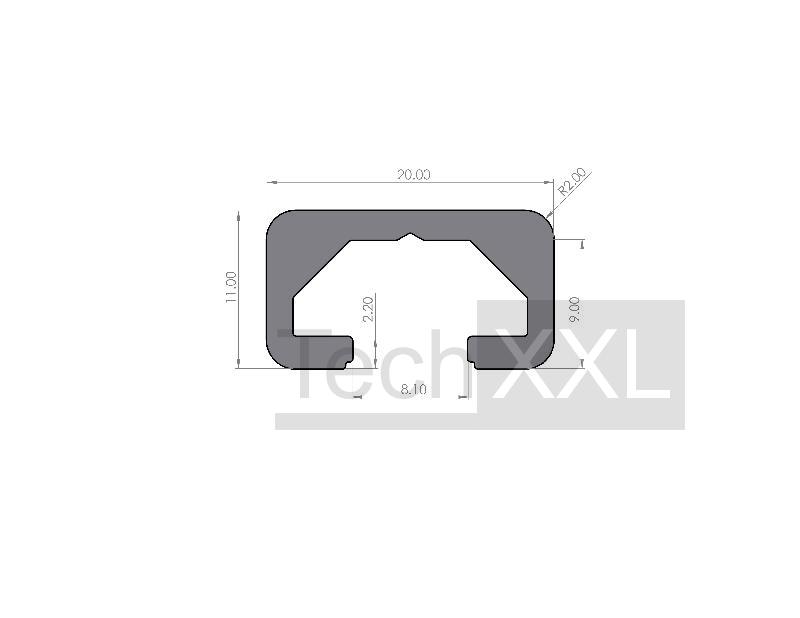

CAD Data
---------------
from stock

Please note
Aluminium profile in natural anodized application from European production Can only be built with connection and accessories of the series 8 in grid B30 Tolerances for cuts according to DIN ISO 2768 Part 1 m

Here you can quickly and easily request the currently best possible price. You will immediately receive an offer including delivery time and availability. We usually have the item in stock.

starting from 3.24 €/m netto


Please choose / Bitte wählen




at bar products request cheap scale price
⮮
Bars a` 6040mm

for cuts (including saw cut) request cheap unit price
⮮
Piece x mm (Milimeter)

optionally add editing

----
The cuting is limited between min. 20 mm and max. 6000mm
Shipping with parcel service is possible until 2400mm
