Hinge, heavy-duty 10 40x40 with clamping lever


Hinge, heavy-duty 10 40x40 with clamping lever wie HS210GMK40
Hinge, heavy-duty 10 40x40 with clamping lever
Hinge, heavy-duty 10 40x40 with clamping lever
Technical data
Serie: Groove 10
Typ: B

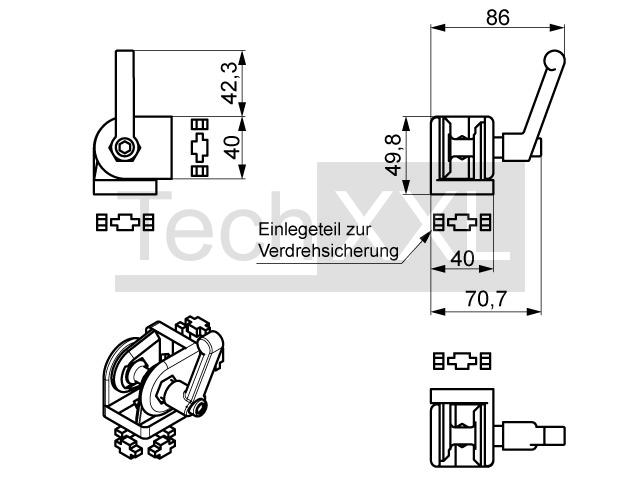

Dimensions (mm): 40 x 40 x 60
Material: ZN beschichtet
Weight: 0,376 Kg
TIN: 101998 ID: S210GMK40
CAD Data
---------------
from stock

Please note

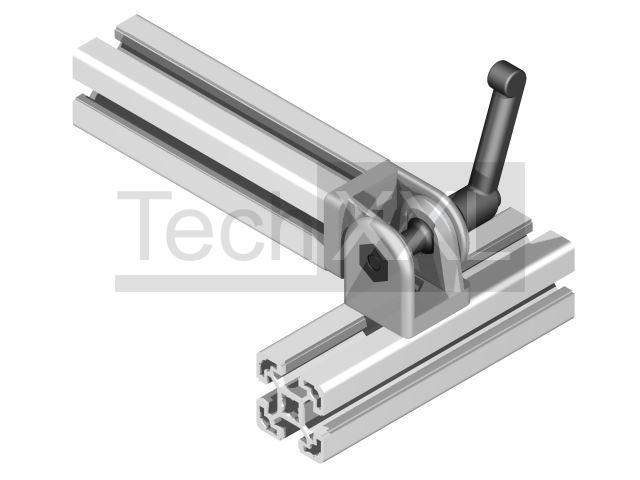

Joints can be used for rigid or movable profile connections at any angle. The maximum swivel range is 180°. The clamping lever is used for easy determination of the necessary angle. End-side connection:reducing self-forming S210RH816, semi-circular screw ISO 7380,M8x25 Connection in the profile groove: semi-circular screw ISO 7380 M8x16 and hammer nut 10 M8. Can be built with all profiles of the series 10 in grid 40

Here you can quickly and easily request the currently best possible price. You will immediately receive an offer including delivery time and availability. We usually have the item in stock.

starting from 10.29 €/Piece netto

request cheap unit price
⮮
Stk.
