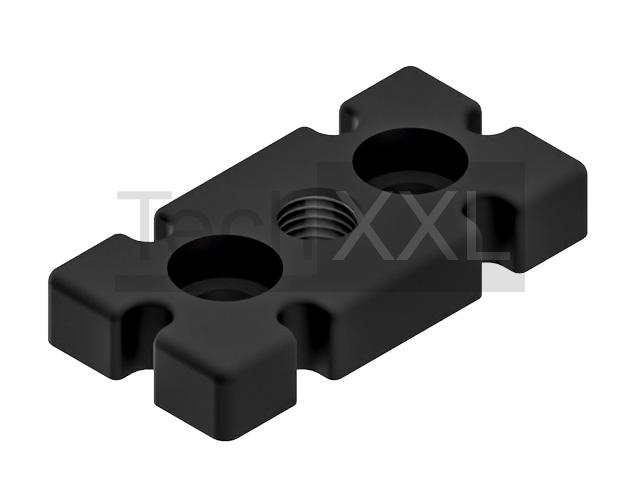

Base plate 10 45x90 M16 black


Base plate 10 45x90 M16 black wie HS210FP459016SCH
Base plate 10 45x90 M16 black
Base plate 10 45x90 M16 black
Technical data
Serie: Groove 10
Typ: B
Dimensions (mm): 90 x 45 x 20
Material: ALU RAL schwarz
Weight: 0,118 Kg
TIN: 101471-S210FP459016SCH
CAD Data
---------------
from stock

Please note
Stable fastening plate for mounting adjusting plates and rollers. The foot plate can be screwed into the core holes of the profiles on the end side. Two central screws M12x30 are required per foot plate. Can be built with profiles 10 in grid 45x90 light/heavy

Here you can quickly and easily request the currently best possible price. You will immediately receive an offer including delivery time and availability. We usually have the item in stock.

starting from 4.66 €/Piece netto

request cheap unit price
⮮
Stk.
