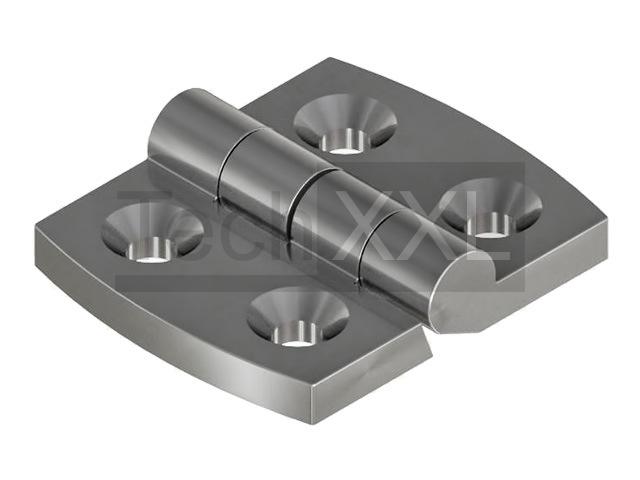

Hinge 6 Al 20
Serie: Groove 6
Typ: B

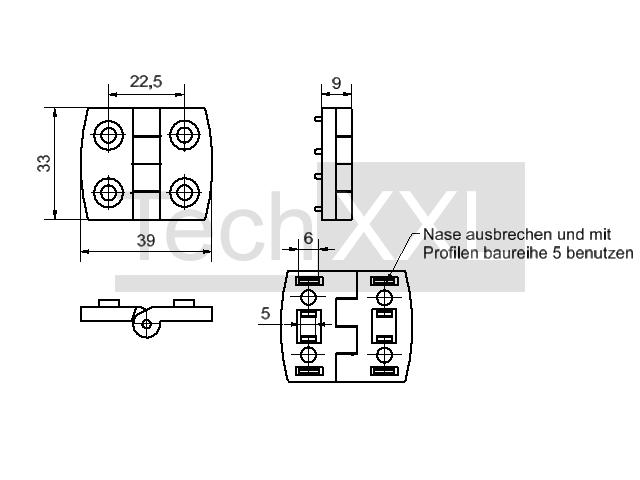

Dimensions (mm): 39 x 33 x 8
Material: ALU
Weight: 0,014 Kg
TIN: 101393-S206SCHAL20
CAD Data
---------------
from stock

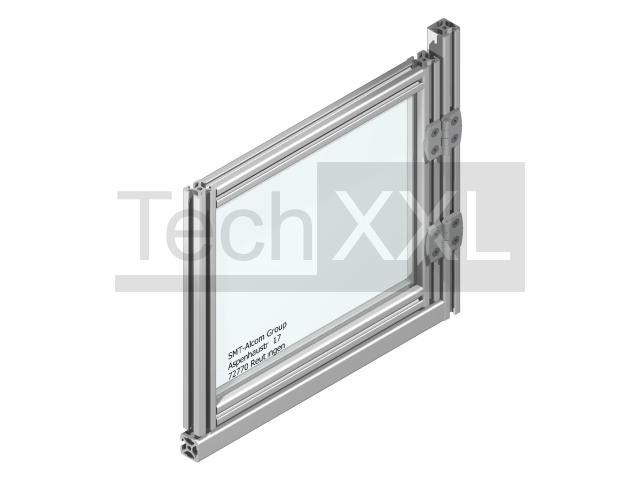

Hinge can be used in profile 6 grid 20 as well as in profile 5 grid 20. The 5 and 6mm led noses on the inside side can be easily broken out
Here you can quickly and easily request the currently best possible price. You will immediately receive an offer including delivery time and availability. We usually have the item in stock.
⮮
