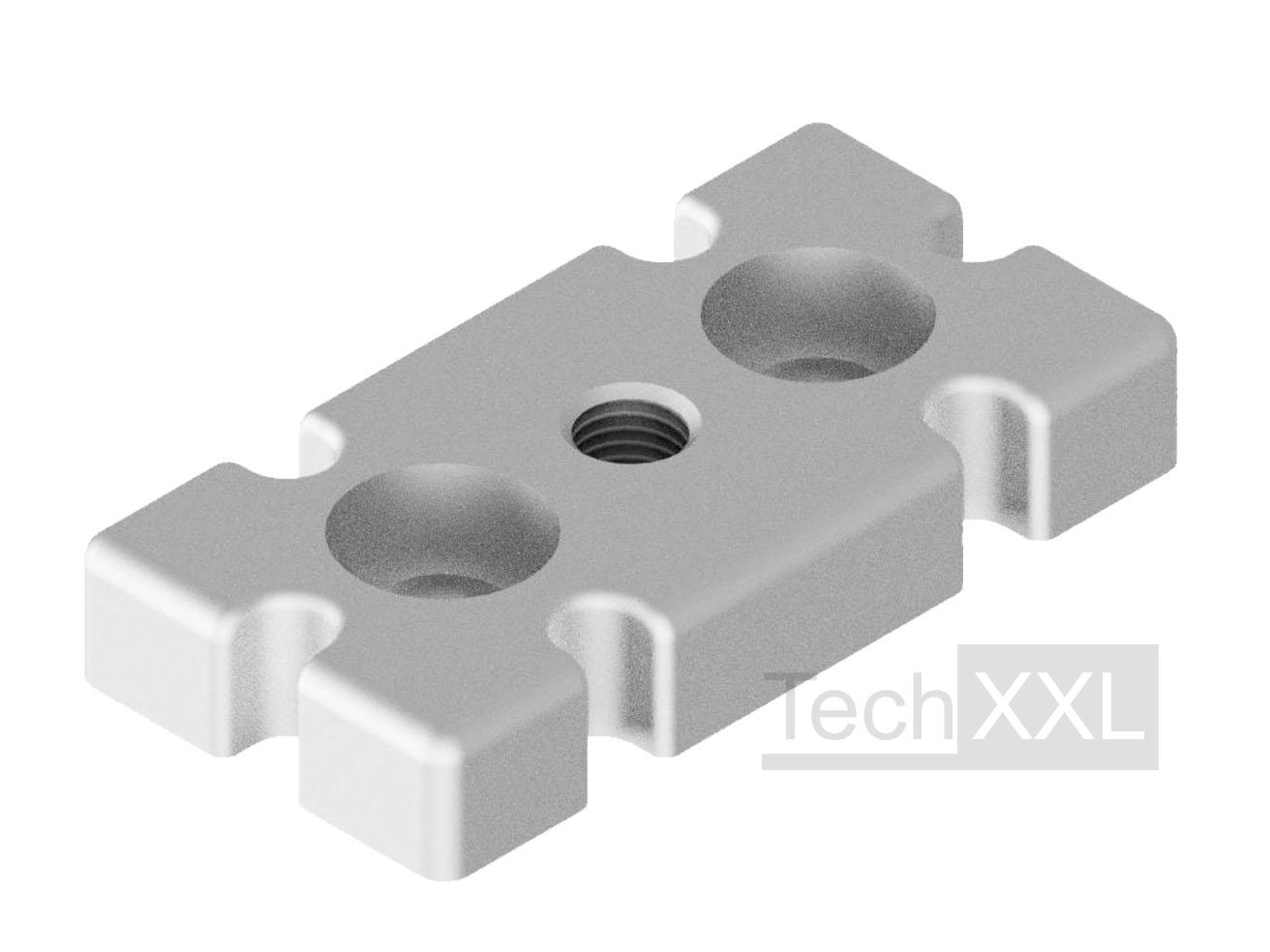

Base plate 10 45x90 M12
Technical data
Serie: Groove 10
Typ: B
Dimensions (mm): 90 x 45 x 20
Material: ALU
Weight: 0,150 Kg
TIN: 101100
CAD Data
---------------
from stock
Serie: Groove 10
Typ: B
Dimensions (mm): 90 x 45 x 20
Material: ALU
Weight: 0,150 Kg
TIN: 101100
CAD Data
---------------
from stock
Please note
Stable fastening plate for mounting adjusting plates and rollers. The foot plate can be screwed into the core holes of the profiles on the end side. Two central screws M12x30 are required per foot plate. Can be built with profiles 10 in grid 45x90 light/heavy
Stable fastening plate for mounting adjusting plates and rollers. The foot plate can be screwed into the core holes of the profiles on the end side. Two central screws M12x30 are required per foot plate. Can be built with profiles 10 in grid 45x90 light/heavy
Here you can quickly and easily request the currently best possible price. You will immediately receive an offer including delivery time and availability. We usually have the item in stock.
starting from 4.26 €/Piece netto
Please choose (bitte wählen):
Please choose (bitte wählen):
request cheap unit price
⮮
⮮
Matching accessoriesAluminium profiles
Profile 10 45x90 light
Profile 10 45x90 heavy
Profile 10 45x90 light 1N
Profile 10 45x90 light 2NScrews
Cylindrical screw with hexagon socket DIN 912 M12x30 galvanized
Central bolt M12x30
