Teknik veriler
Serisi: Groove 5
Typ: I
Mae (mm): 19 x 10 x 4,5
Malzeme: Stahl rostfrei
Ağırlık: 0,0015 Kg
TIN: 101166 ID: S205ZPR
CAD Veri
---------------
stoktan

Lütfen dikkat

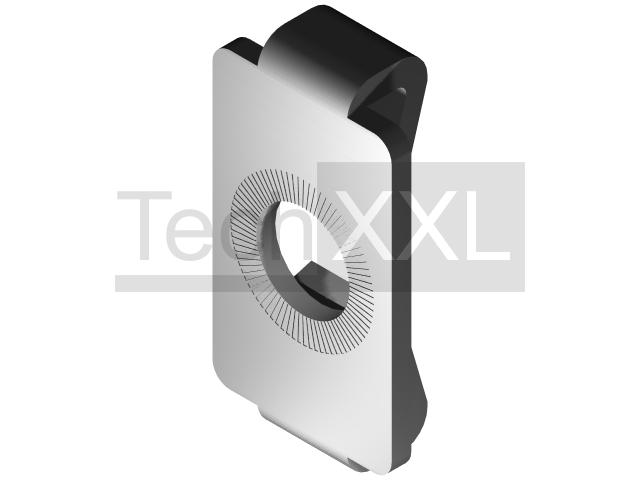

Centering plates are used for a stable 90° connection with low machining effort. A thread M5 must be cut into the core bore of one profile and a hole with a diameter of 4.3 must be drilled in the right angled profile. In other way, centering plates ensure a true fixation of the profiles. The centering plate 5 is stainless under S205ZPSR also available as a set. Can be built with all profiles of the series 5 in grid 20

Kapalı 0.53 €/Adet. netto
