Tekniske data
Serie: Groove 6
Typ: I

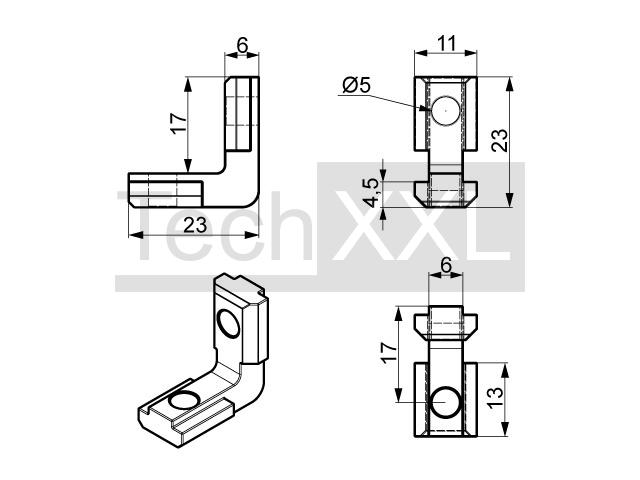

Mae (mm): 23 x 23 x 11
Materiale: ZN Stahl verzinkt
Vægt: 0,0291 Kg
TIN: 101990 ID: S206VBIAS
CAD Data
---------------
Levering 8 Uger

Bemærk venligst, at

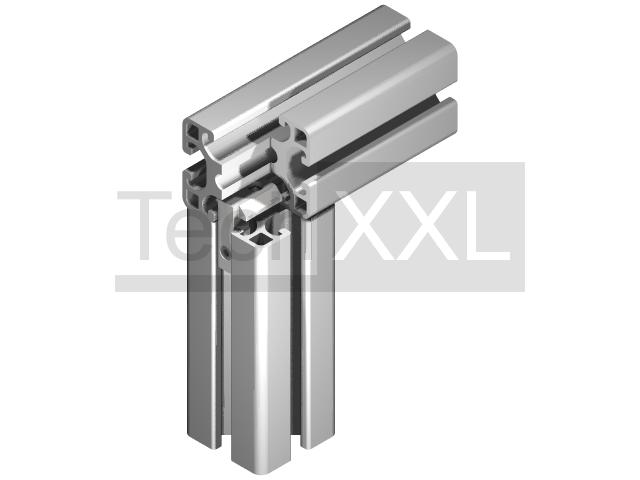

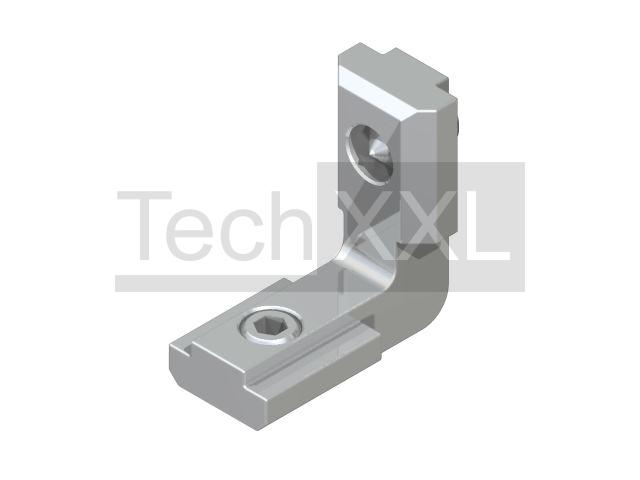

The inner-exterior connection angle set allows for an in-process and assembly-free 90° connection for the production of frames for doors, protective grilles or separating walls. Two pre-assembled maggot screws are included in the scope of delivery. Can be built with all profiles of the series 6 in grid 30
