Tekniske data
Serie: Groove 8
Typ: I
Mae (mm): 80 x 40 x 40
Materiale: ZN beschichtet
Vægt: 0,320 Kg
TIN: 101813 ID: S208XG40

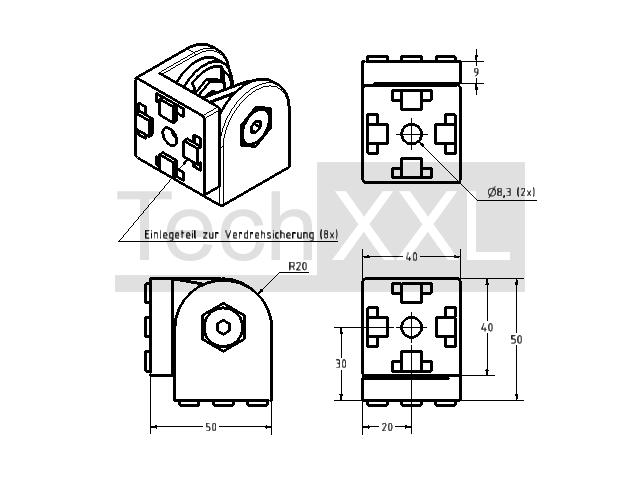

CAD Data
---------------
fra lager

Bemærk venligst, at

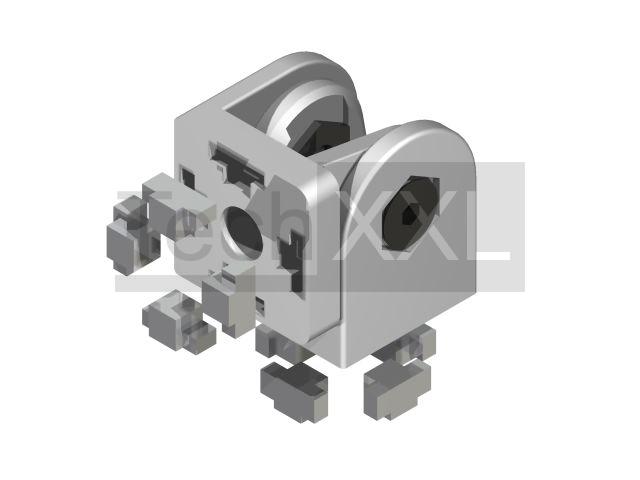

Series joints can be used for rigid or movable profile connections at any angle. The maximum swivel range is 180°. When used on the front side, an M 8 thread must be cut in the core hole of the profile. End-side connection: semi-circular screw ISO 7380,M8x25 Connection in the profile groove: semi-circular screw ISO 7380 M8x16 and Nutenstein 8 without bridge M8. Can be used with all profiles of the MW-Line series

Ud 9.22 €/Pc'er. netto
