Technické údaje
Série: Groove 5
Typ: I

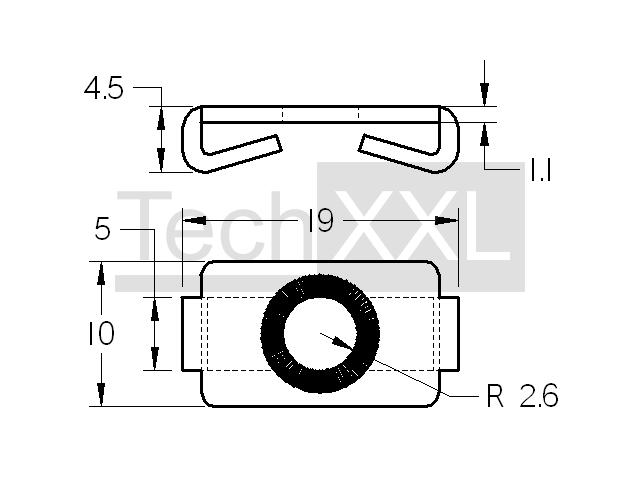

Mae (mm): 19 x 10 x 4,5
Materiál: Stahl rostfrei
Hmotnosť: 0,0015 Kg
TIN: 101166 ID: S205ZPR
CAD Údajov
---------------
zo skladu

Upozorňujeme
Centering plates are used for a stable 90° connection with low machining effort. A thread M5 must be cut into the core bore of one profile and a hole with a diameter of 4.3 must be drilled in the right angled profile. In other way, centering plates ensure a true fixation of the profiles. The centering plate 5 is stainless under S205ZPSR also available as a set. Can be built with all profiles of the series 5 in grid 20

Vypnuté 0.53 €/Počítačov. netto
