Date tehnice
Serie: Groove 8
Typ: I

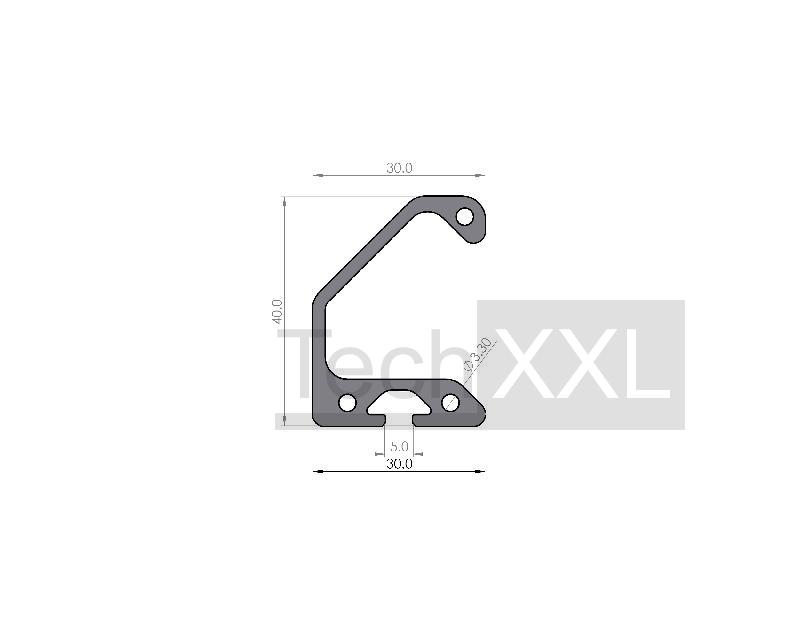

Mae (mm): 6040 x 40 x 30
Material: AlMgSi0,5F25 natur eloxiert
Moment de confort I x: 5,87 cm4
Moment de confort I y: 2,39 cm4
Moment de rezistență W x: 2,36 cm³
Moment de rezistență W y: 1,46 cm³
Greutate: 0,760 Kg/m
TIN: 100571 ID: S108GLP
CAD Date
---------------
din stoc

Vă rugăm să rețineți
The handle bar profile is used for the large-format attachment to swivel and sliding tins as well as drawers and flaps. It can also be mounted on flat elements as additional stabilization. Preferably, the cutting edges must be closed with the handle bar cover set. Groove stones from the series 5 are needed for screwing on. Can be used with all profiles of the 5/6/8 series

Off 12.59 €/m netto
