Tekniske data
Serie: Groove 8
Typ: I
Mae (mm): 35 x 17 x 2,2
Materiale: ST verzinkt
Vægt: 0,018 Kg

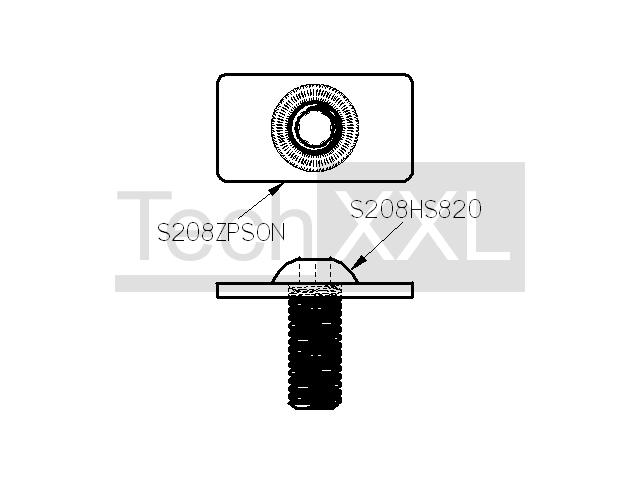

TIN: 100347-S208ZPSON
CAD Data
---------------
fra lager

Bemærk venligst, at

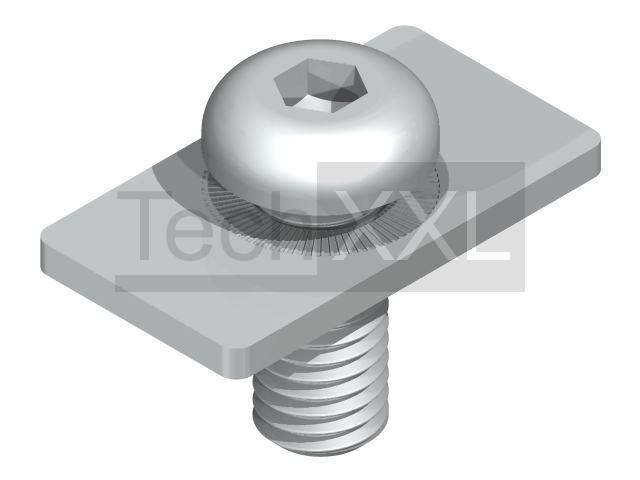

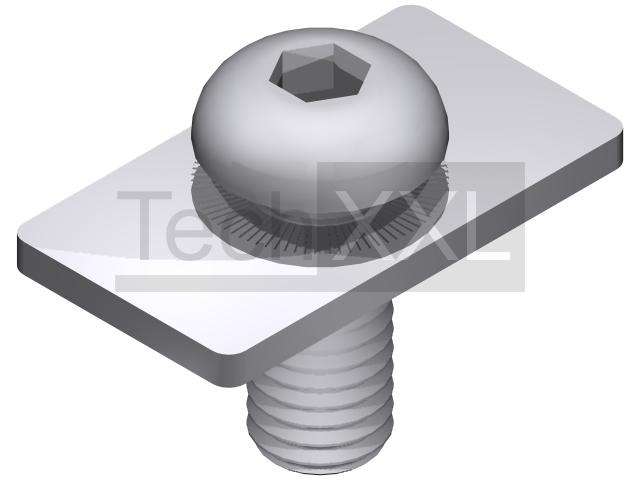

Centering plate slabs without nose are used for a stable 90° connection with small machining effort. Only one M8 thread must be cut into the core bore of one profile and a hole with a diameter of 7.0 must be made in the right angled profile. Can be built with all profiles of the series 8 in grid 40

Ud 0.38 €/Sæt netto
