Technické údaje
Série: Groove 5
Typ: I
Rozměry (mm): 6040 x 40 x 30
Materiál: AlMgSi0,5F25 natur eloxiert
Okamžik pohodlí I x: 5,87 cm4
Okamžik pohodlí I y: 2,39 cm4
Moment odporu W x: 2,35 cm³
Moment odporu W y: 1,46 cm³
Hmotnost: 0,758 Kg/m
TIN: 101252 ID: S105GLP
CAD Dat
---------------
ze skladu

Upozorňujeme

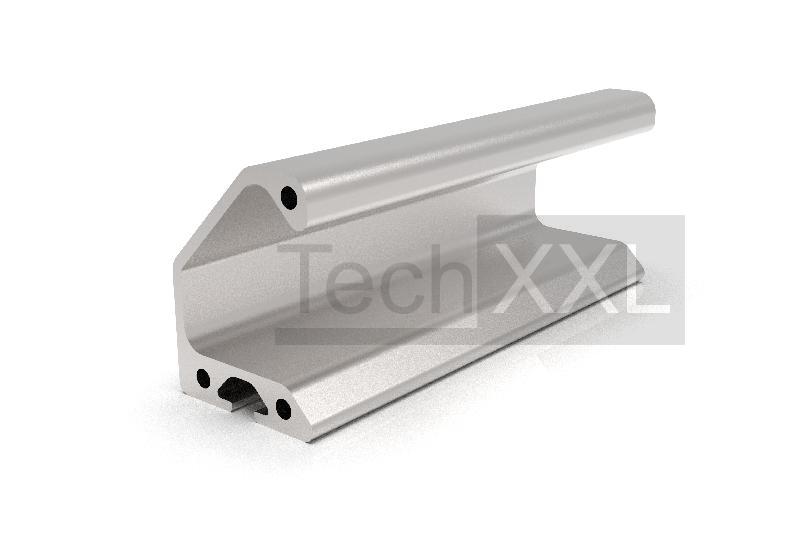

The handle bar profile is used for the large-format attachment to swivel and sliding tins as well as drawers and flaps. It can also be mounted on flat elements as additional stabilization. Preferably, the cutting edges must be closed with the handle bar cover set. Groove stones from the series 5 are needed for screwing on. Can be used with all profiles of the 5/6/8 series

Vypnuto 10.89 €/m netto

Tyče Řezání
