Date tehnice
Serie: Groove 8
Typ: B
Mae (mm): 45 x 30 x 30
Material: ZN beschichtet
Greutate: 0,155 Kg
TIN: 101235 ID: S208GMK30
CAD Date
---------------
din stoc

Vă rugăm să rețineți

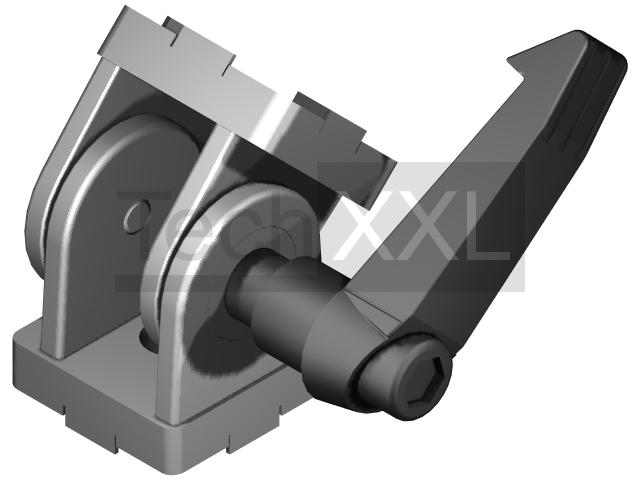

Joints can be used for rigid or movable profile connections at any angle. The maximum swivel range is 180°. The clamping lever is used for easy determination of the necessary angle. When used on the front side, an M 8 thread must be cut in the core hole of the profile. End-side connection: cylinder head screw DIN 912,M8x25 Connection in the profile groove: cylinder head screw DIN 912 M8x16 and Nutenstein 8 without bridge M8. Can be used with all profiles of the series 8 of the grid 30.

Off 9.07 €/Buc. netto
