Date tehnice
Serie: Groove 5
Typ: I

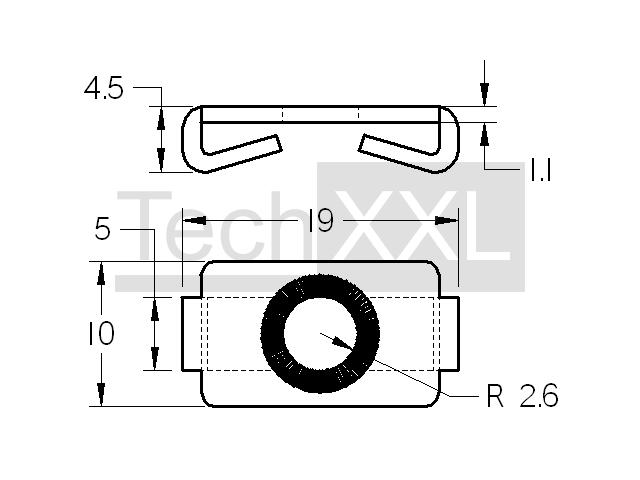

Mae (mm): 19 x 10 x 4,5
Material: Stahl rostfrei
Greutate: 0,0015 Kg
TIN: 101166 ID: S205ZPR
CAD Date
---------------
din stoc

Vă rugăm să rețineți
Centering plates are used for a stable 90° connection with low machining effort. A thread M5 must be cut into the core bore of one profile and a hole with a diameter of 4.3 must be drilled in the right angled profile. In other way, centering plates ensure a true fixation of the profiles. The centering plate 5 is stainless under S205ZPSR also available as a set. Can be built with all profiles of the series 5 in grid 20

Off 0.53 €/Buc. netto
