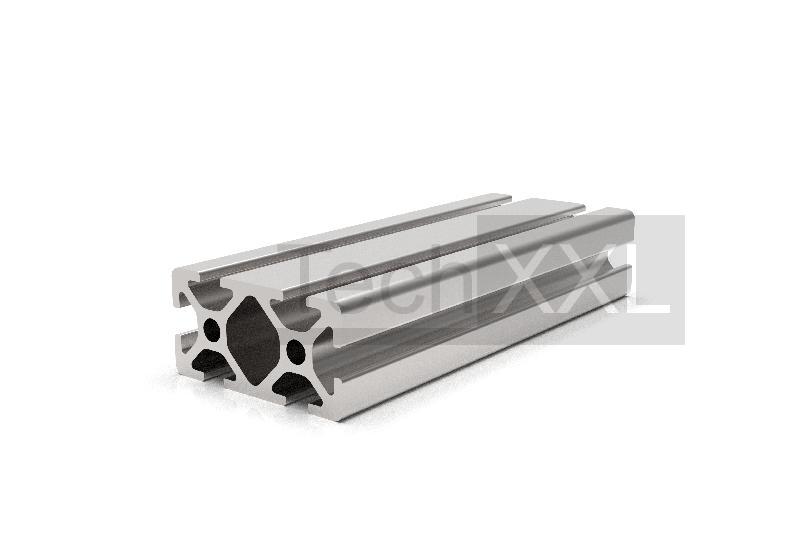

Profile 5 40x20 length 3040mm

made in Europe

Profile 5 40x20 length 3040mm wie HS1054020M3
Profile 5 40x20 length 3040mm compatible to Item 0.0.370.04
Technical data
Serie: Groove 5
Typ: I
Dimensions (mm): 3040 x 40 x 20
Material: AlMgSi0,5F25 natur eloxiert
Moment of inertia I x: 1,42 cm4
Moment of inertia I y: 5,2 cm4
Elastic modulus W x: 1,42 cm³
Weight: 0,890 Kg/m
TIN: 102813
CAD Data
---------------
from stock

Please note
Aluminium profile in natural anodized application from European production Can be built with all accessories of the class 5 The length of the line is 3040mm incl. contact points on both sides of the anodising

Here you can quickly and easily request the currently best possible price. You will immediately receive an offer including delivery time and availability. We usually have the item in stock.

starting from 6.79 /m netto


Please choose / Bitte wählen




at bar products request cheap scale price
Bars a` 3040mm
