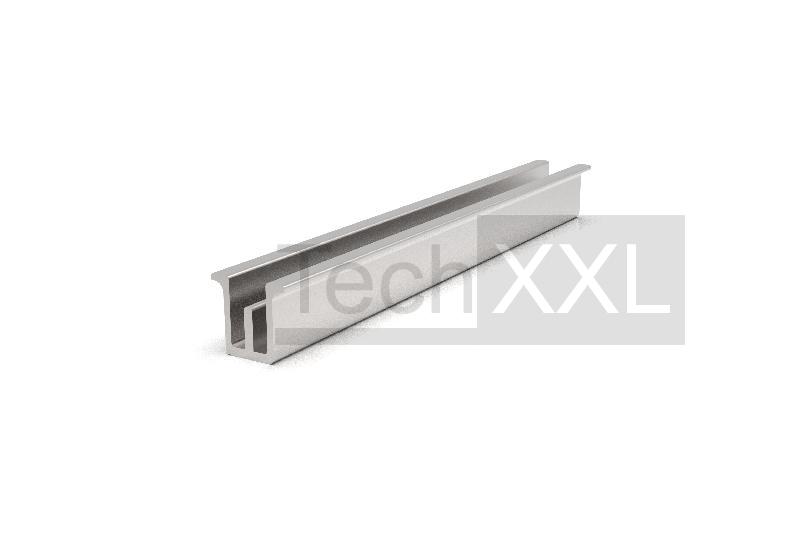

Shaft-clamp profile 5 D6
made in Europe
Technical data
Serie: Groove 5
Typ: I

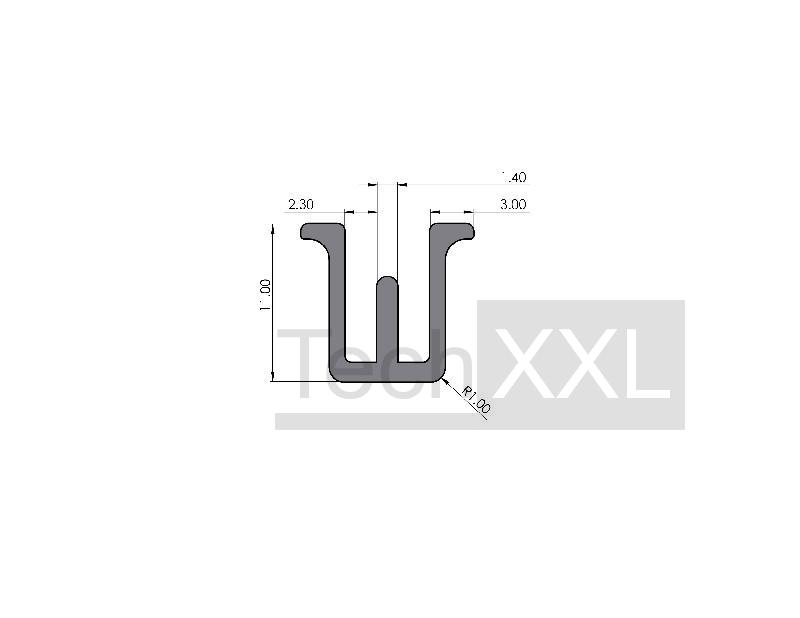

Dimensions (mm): 3040 x 9 x 11
Material: AlMgSi0,5F25 natur eloxiert
Moment of inertia I x: 0,05 cm4
Moment of inertia I y: 0,04 cm4
Elastic modulus W x: 0,09 cm³
Elastic modulus W y: 0,07 cm³
Weight: 0,11 Kg/m
TIN: 102515
CAD Data
---------------
from stock
Serie: Groove 5
Typ: I
Dimensions (mm): 3040 x 9 x 11
Material: AlMgSi0,5F25 natur eloxiert
Moment of inertia I x: 0,05 cm4
Moment of inertia I y: 0,04 cm4
Elastic modulus W x: 0,09 cm³
Elastic modulus W y: 0,07 cm³
Weight: 0,11 Kg/m
TIN: 102515
CAD Data
---------------
from stock
Please note
Aluminium profile in natural anodized application from European production The shaft clamp profile D6 is used to accommodate the steel shaft 6. After mounting the shaft terminal profile into a profile groove, the shaft is finally penetrated Can be used with all profiles of the class 5 Tolerances for cuts according to DIN ISO 2768 Part 1 m
Aluminium profile in natural anodized application from European production The shaft clamp profile D6 is used to accommodate the steel shaft 6. After mounting the shaft terminal profile into a profile groove, the shaft is finally penetrated Can be used with all profiles of the class 5 Tolerances for cuts according to DIN ISO 2768 Part 1 m
Here you can quickly and easily request the currently best possible price. You will immediately receive an offer including delivery time and availability. We usually have the item in stock.
starting from 3.16 €/m netto
Please choose / Bitte wählen
at bar products request cheap scale price
⮮
for cuts (including saw cut) request cheap unit price
⮮ The cuting is limited between min. 20 mm and max. 3000mm
Shipping with parcel service is possible until 2400mm
Please choose / Bitte wählen
at bar products request cheap scale price
⮮
for cuts (including saw cut) request cheap unit price
⮮ The cuting is limited between min. 20 mm and max. 3000mm
Shipping with parcel service is possible until 2400mm
