Base plate 10 80x80 M16


Base plate 10 80x80 M16 wie HS210FP808016
Base plate 10 80x80 M16
Base plate 10 80x80 M16
Technical data
Serie: Groove 10
Typ: B

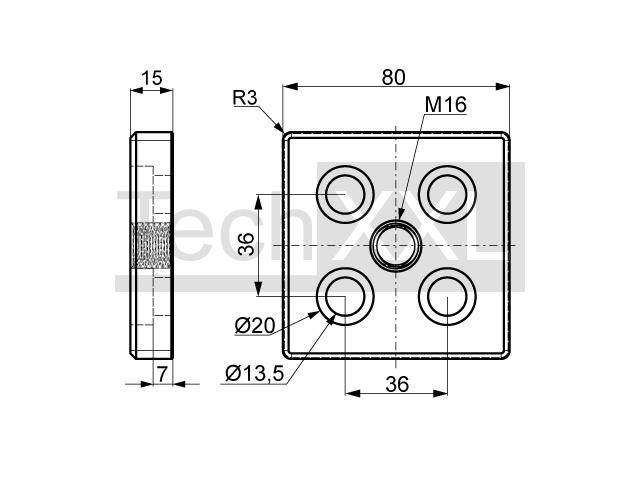

Dimensions (mm): 80 x 80 x 15
Material: ZN/AL beschichtet
Weight: 0,200 Kg
TIN: 101445
CAD Data
---------------
from stock

Please note
Stable fastening plate for mounting adjusting plates and rollers.The foot plate can be mounted on the front side of the core holes of the profiles with four central screws M12x30 or for lateral use in the profile grooves with cylinder head screws DIN 912 M8x16 in hammer nuts screwed. Buildable with profile 10 80x80

Here you can quickly and easily request the currently best possible price. You will immediately receive an offer including delivery time and availability. We usually have the item in stock.

starting from 7.23 €/Piece netto


Please choose (bitte wählen):




request cheap unit price
⮮
Stk.


Matching accessories

Aluminium profiles

Profile 10 80x80



Hammer-head nuts

Hammer-head nut Nut 10, M8 centre bar 3mm



Screws

Cylindrical screw with hexagon socket DIN 912 M12x30 galvanized


Central bolt M12x30
