Hinge, heavy-duty 8 40x40 with clamping lever

Hinge, heavy-duty 8 40x40 with clamping lever

Technical data
Serie: Groove 8
Typ: I
Dimensions (mm): 80 x 40 x 40
Material: ZN beschichtet
Weight: 0,410 Kg
TIN: 100724

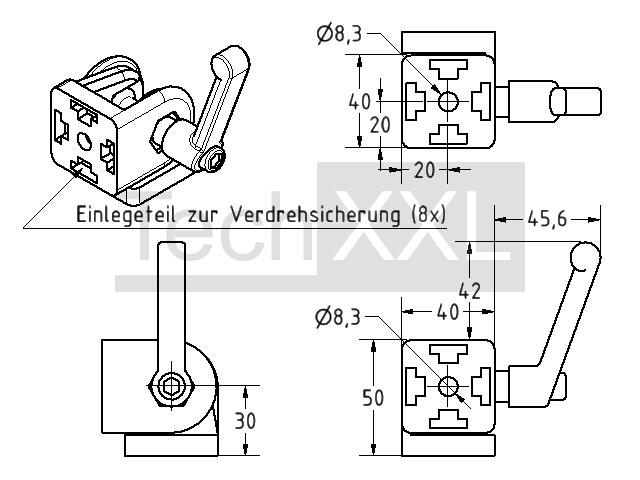

CAD Data
---------------
from stock

Please note
Joints can be used for rigid or movable profile connections at any angle. The maximum swivel range is 180°. The clamping lever is used for easy determination of the necessary angle. When used on the front side, an M8 thread must be cut in the core hole of the profile. End-side connection: semi-circular screw ISO 7380,M8x25 Connection in the profile groove: semi-circular screw ISO 7380 M8x16 and Nutenstein 8 without bridge M8. Can be used with all profiles of the series 8 of the grid 40.

Here you can quickly and easily request the currently best possible price. You will immediately receive an offer including delivery time and availability. We usually have the item in stock.

starting from 10.88 €/Piece netto

Please choose (bitte wählen):

request cheap unit price
⮮
