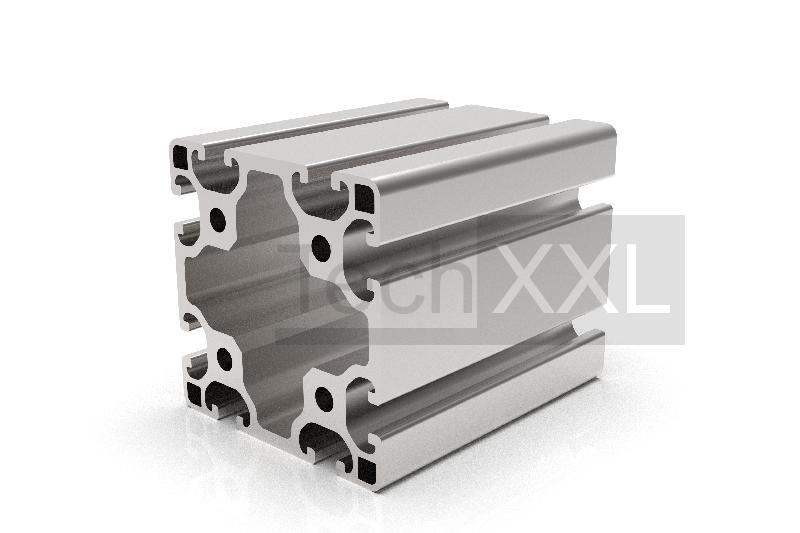

Profile 8 80x80 light

made in Europe

Profile 8 80x80 light wie HS1088080L
Profile 8 80x80 light compatible to Item 0.0.265.80
Technical data
Serie: Groove 8
Typ: I

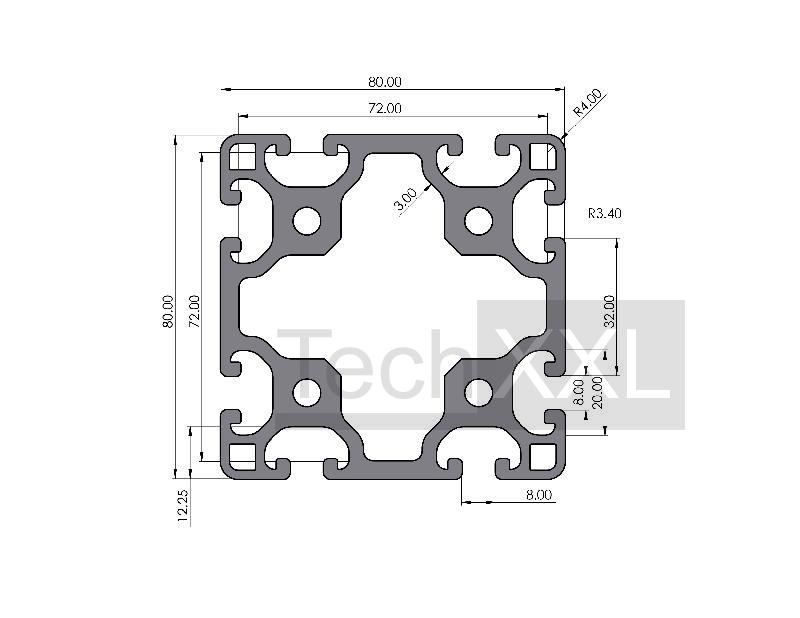

Dimensions (mm): 6040 x 80 x 80
Material: AlMgSi0,5F25 natur eloxiert
Moment of inertia I x: 136,17 cm4
Moment of inertia I y: 136,17 cm4
Elastic modulus W x: 34,04 cm³
Elastic modulus W y: 34,04 cm³
Weight: 5,406 Kg/m
TIN: 100545
CAD Data
---------------
from stock

Please note
Aluminium profile in natural anodized application from European production Can be built with class 8 accessories in grid 40 Profile is ideal for thread edits Tolerances for cuts according to DIN ISO 2768 Part 1 m

Here you can quickly and easily request the currently best possible price. You will immediately receive an offer including delivery time and availability. We usually have the item in stock.

starting from 36.21 /m netto


Please choose / Bitte wählen




at bar products request cheap scale price
Bars a` 6040mm

for cuts (including saw cut) request cheap unit price
Piece x mm (Milimeter)

optionally add editing

----
The cuting is limited between min. 20 mm and max. 6000mm
Shipping with parcel service is possible until 2400mm
