Hinge, heavy-duty 6 30 x 30


Hinge, heavy-duty 6 30 x 30 wie HS206G30
Hinge, heavy-duty 6 30 x 30 compatible to Item 0.0.419.80
Hinge, heavy-duty 6 30 x 30

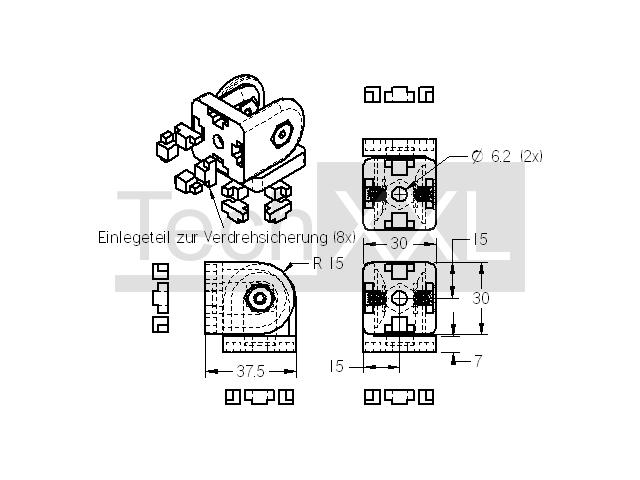

Technical data
Serie: Groove 6
Typ: I
Dimensions (mm): 45 x 30 x 30
Material: ZN beschichtet
Weight: 0,128 Kg
TIN: 100161
CAD Data
---------------
from stock

Please note
Joints can be used for rigid or movable profile connections at any angle. The maximum swivel range is 180°. When used on the front side, an M6 thread must be cut in the core hole of the profile. Mounting material with end-side screwing: 2x semi-circular. M6x18 (S208HS618). Mounting material for screwing in the profile groove: 2x semi-circular. M6x12 (S208HS612) + 2x Nutenstein 6 without bridge M6 (S206NSOS6). Can be built with all profiles of the series 6 in grid 30

Here you can quickly and easily request the currently best possible price. You will immediately receive an offer including delivery time and availability. We usually have the item in stock.

starting from 7.51 /Piece netto


Please choose (bitte wählen):




request cheap unit price
Stk.
