Tekniske data
Serie: Groove 6
Typ: I
Mae (mm): 25 x 12,45 x 15,6
Materiale: ZN
Vægt: 0,011 Kg
TIN: 100098 ID: S206UV
CAD Data
---------------
fra lager

Bemærk venligst, at

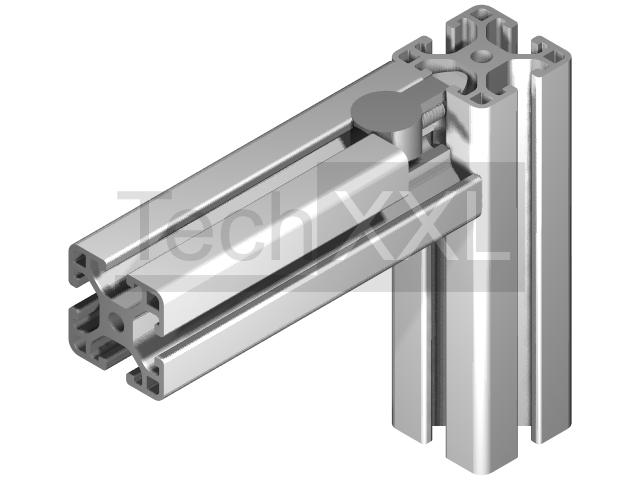

The universal connector is used to establish a 90° connection. For the profile, a bore in the diameter of 16mm must be attached. The distance of the hole from the end of the profile is 15mm, the drilling depth is 12.7mm. The connection should always be made in pairs for secure hold 180° opposite

Ud 0.31 €/Pc'er. netto
