Tekniske data
Serie: Groove 5
Typ: I
Mae (mm): 11,8 x 8,6 x 17,1
Materiale: ZN, ST rostfrei
Vægt: 0,007 Kg
TIN: 100023-S205UVSR
CAD Data
---------------
fra lager

Bemærk venligst, at

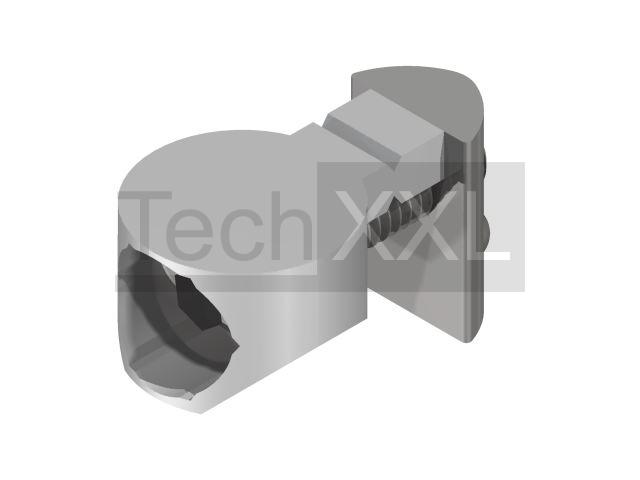

The universal connector set is used to establish a 90°° connection. For the profile, a bore in the diameter of 12mm must be attached. The distance of the hole from the end of the profile is 10mm, the drilling depth is 8.5mm. The connection should always be made in pairs for a secure hold of 180° in relation to the other. The set still contains a screw and a groove stone in stainless steel

Ud 1.39 €/Sæt netto
